Classification of electric shockn : Classification II , equipment powered by internal power supply included
Degree of electric shock protection : Applied part of BF type without defibrillation discharge effect
than 2 hours at 25 ml/h in full charged
Charging time : 12-14 hours in the shutdown state

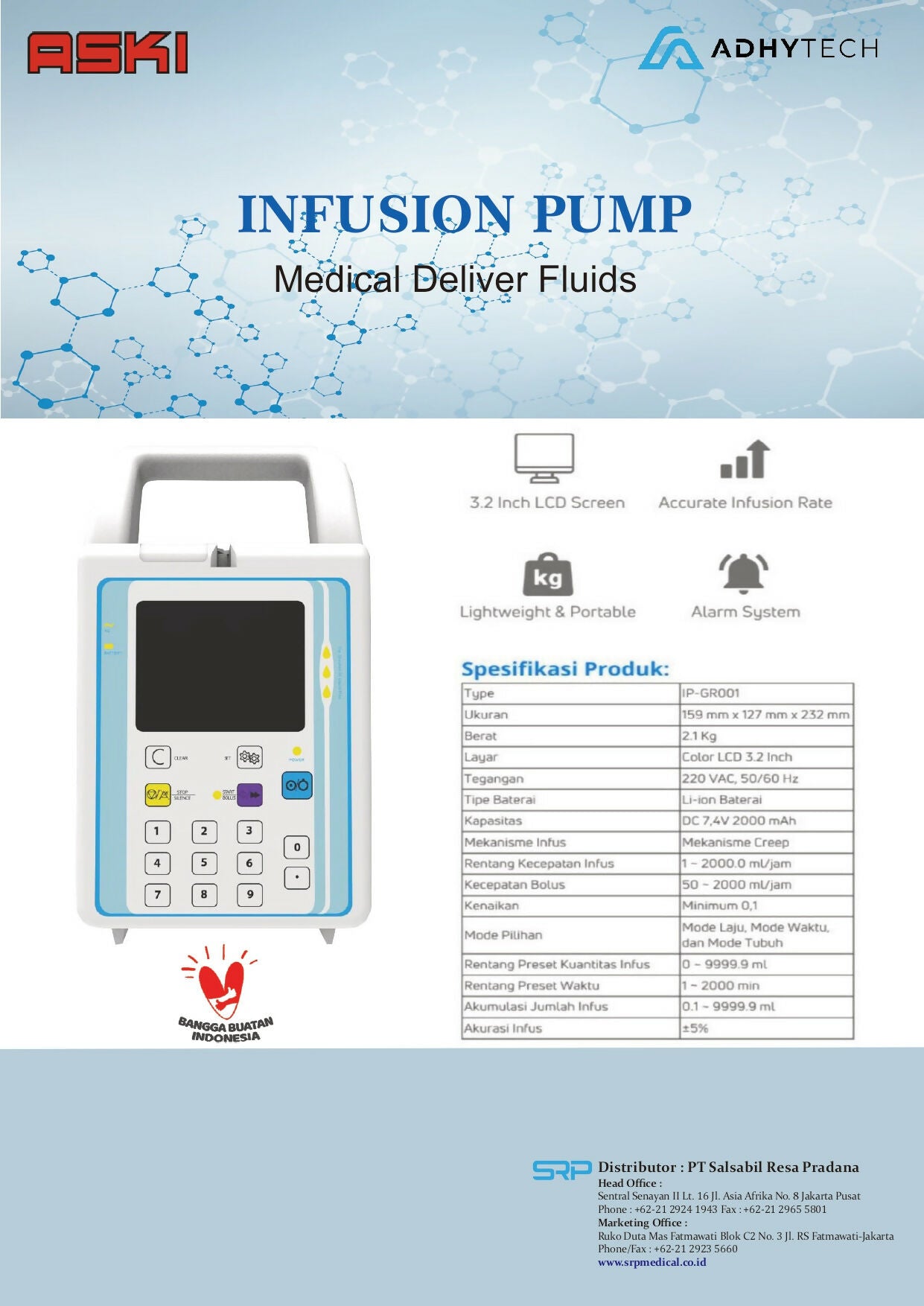

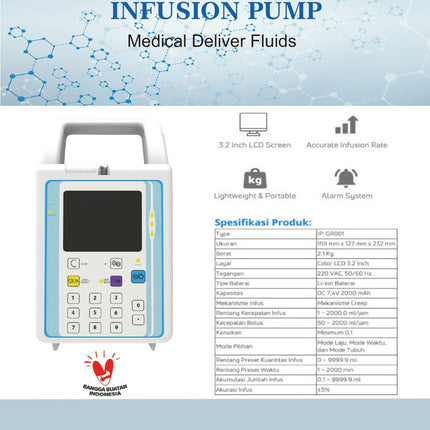

Specification of hardware
Complete machine
Size : 159 mm x 127 mm x 232 mm
Weight : ≈ 2.1 kg
Display screen
Type : Color LCD
Size : 3.2 Inch
Indicating lamp
Quantity : A group of alarm indicating lamps (red/yellow), 1 Power indicationg lamp (green), 1 AC power indicating lamp (green), 1 battery power indicating lamp (green), 1 start indicating lamp (green), 3 flow
direction indicating lamp (green)
Interface
AC Power supply interface : 1
Basic parameters of infusion pump
Mechanism of infusion pump : Creep mechanism
Speed range of infusion : 1 ~ 2000.0 ml/h
Bolus speed : 50 ~ 2000 ml/h
Increment : Minimum 0.1
Mode selection : Rate mode, time mode and body mode
Rate mode : Speed: 1 ml/h ~ 2000.0 ml/h: preset 0.1 ~
9999.9 ml (can be 0)
Time mode : Time : 1 ~ 2000 min; Quantity of liquid : 0.1 ~ 9999.9 ml
Body Mode : Weight : 0.1 ~ 300.0 kg
Quantity of medicine : 0.1 ~ 999.9 mg Quantity of liquid : 0.1 ~ 9999.9 ml Dosage: 0.1 ~ 1500.0 (It is determined by the above three parameters and the unit of dosage)
Unit of dosage : mg/kg/h, ug/kg/min
KVO : The KVO speed ranges from 0.0 ~ 5.0 ml/h (When the accumulative amount reaches preset value, the infusion pump will start KVO (keep vein open) function
automatically.0 means KVO function closed
Range of preset infusion quantity : 0 ~ 9999.9 ml
Range of preset time : 1 ~ 2000 min
Accumulated infusion quantity : 0.1 ~ 9999.9 ml
Infusion accuracy : ±5%
Display information : Speed, preset quantity, accucmulated quantity, capacity of battery, Infusion tube
brand, finish, occlusion, bubble, bed number, time, pressure value etc
Alarm message : Finish, occlusion, bubble, near, tube err, system err 1, system err2, system errr4,system err 6, system err 7, forget, speed error, No AC, low battery and dead battery
Status indicator : Bolus, exhausting, KVO ( KVO speed set to
0 excluded), calibrating, calibration succcesful and calibration failure
Air bubble measurement : The minimum volume of air bubble measurable at 25 ml/h is 40 ul
Infusion pressure : The maximum pressure could reach
180kPa, the threshold pressure for blocking alarm is (40 ~ 160) kPa
