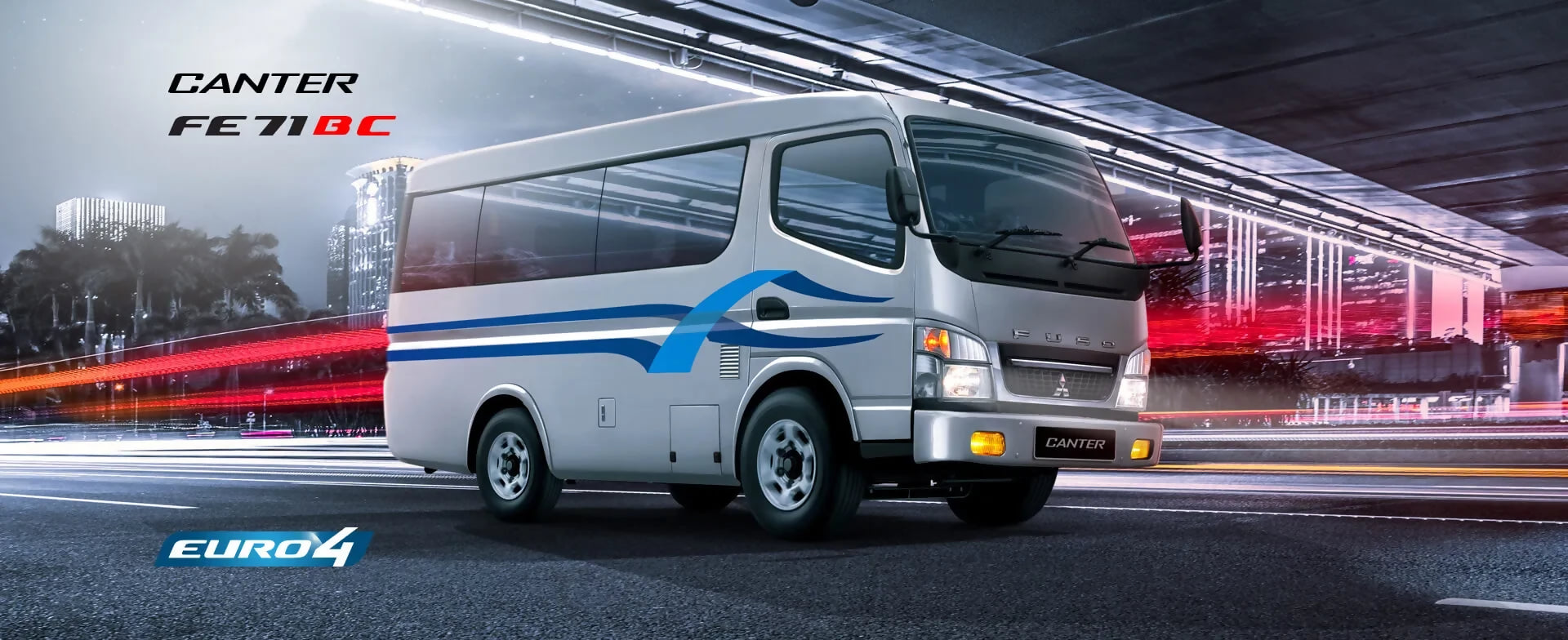

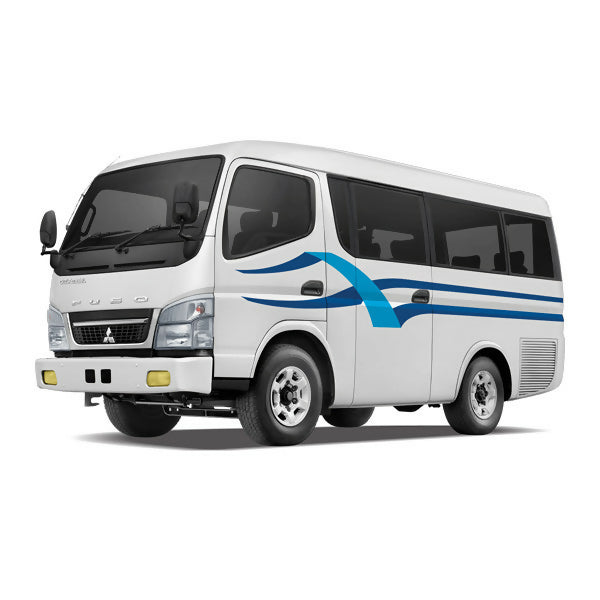

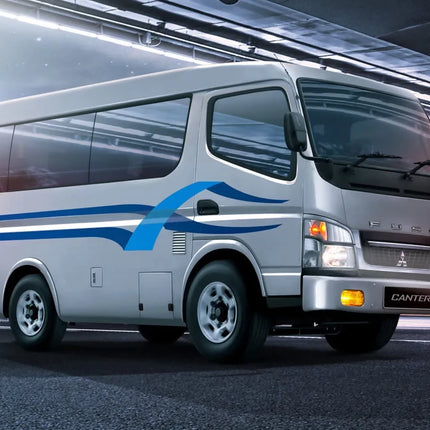

TRUK CANTER 4 BAN FE 71 BC N

Description

Spesifikasi :
Dimensi :
  • Jarak Sumbu Roda (mm) : 2.500
  • Panjang Keseluruhan (mm) : 4.890
  • Lebar Keseluruhan (mm) : 1.750
  • Tinggi keseluruhan (mm) : 2.055
  • Tinggi Minimal dari Tanah (mm) : 200
  • Jarak roda depan kiri-kanan (mm) : 1.390
  • Jarak roda belakang kiri-kanan (mm) : 1.380
  • Cab to End (mm) : 3.095

Berat :
Berat Chassis Termasuk Kabin (kg) : 1.790
Max G.V.W (kg) : 5.150

Performa
Kecepatan maksimum (km/jam) : 116
Daya tanjak dengan max G.V.W (tan) : 35
Radius putar minimum (m) : 5.1

Roda
Ban : 7.50-15-12PR
Velg : 15x5.50F, 6 studs

Mesin
Model : 4D34-2AT5
Tipe : 4 langkah, direct injection, mesin diesel pendingin air dengan turbo intercooler
Diameter X langkah (mm) : 104x115
Jumlah silinder (cc) : 4 sejajar
Isi S silinder : 3.908
Daya maksimum (PS/rpm) : 136/2.900
Torsi maksimum (Kg.m/rpm) : 38/1.600

Transmisi
Model : Model : M035S5
Tipe : 5 gigi maju dan 1 gigi mundur, 1-5 synchromesh, gigi mundur constantmesh
Perbandingan gigi : 5.181-2.865-1.593-1.000-0.739 Mundur 5.181
Kopeling : Pelat kering tunggal, C3W28D

As
Depan : Reverse Elliot, type "I" Beam
Belakang : Full Floating Type
Perbandingan gigi akhir : 4.875

Setir
Tipe : Ball & Nut type with adjustable steering column (Tilt & telescopic)

Suspensi
Depan : Semi elliptic, aminated leaf springs dengan shock absorber
Belakang : Semi elliptic, laminated leaf springs dengan shock absorber

Rem
Rem Kaki : Sistem Hidraulis dengan Vacuum Servo Assistance, Dual Circuit
Rem Tangan : Tipe internal expanding di bagian belakang transmisi
Rem Pembantu : Sistem pengereman gas buang

Sistem Kelistrikan
Accu : 24 V

Kapasitas Tangki
Tangki (liter) : 70

TRUK CANTER 4 BAN FE 71 BC N

Product form

Spesifikasi :Dimensi : Jarak Sumbu Roda (mm) : 2.500 Panjang Keseluruhan (mm) : 4.890 Lebar Keseluruhan (mm) : 1.750 Tinggi... Read more

Rp 431.000.000,00 Rp 430.500.000,00 Excl. VAT

    • Guaranteed secure & safe checkout.
      • Free shipping on all orders above 50,00
      • No hassle returns, 30 days return
      Pay whenever you wantPay whenever you want

      Easily pay within 30 days after you have received your package.
      Read more

      Shipping and returnsShipping and returns

      Orders can be returned or exchanged within 30 days of receiving the parcel, providing they are in original resalable condition. We ship worldwide. Your order will be packaged really carefully and delivered wherever you want. Delivery takes between 2-4 business days.


      This is a demonstration store. You can’t purchase products like this.

      Description

      Spesifikasi :
      Dimensi :
      • Jarak Sumbu Roda (mm) : 2.500
      • Panjang Keseluruhan (mm) : 4.890
      • Lebar Keseluruhan (mm) : 1.750
      • Tinggi keseluruhan (mm) : 2.055
      • Tinggi Minimal dari Tanah (mm) : 200
      • Jarak roda depan kiri-kanan (mm) : 1.390
      • Jarak roda belakang kiri-kanan (mm) : 1.380
      • Cab to End (mm) : 3.095

      Berat :
      Berat Chassis Termasuk Kabin (kg) : 1.790
      Max G.V.W (kg) : 5.150

      Performa
      Kecepatan maksimum (km/jam) : 116
      Daya tanjak dengan max G.V.W (tan) : 35
      Radius putar minimum (m) : 5.1

      Roda
      Ban : 7.50-15-12PR
      Velg : 15x5.50F, 6 studs

      Mesin
      Model : 4D34-2AT5
      Tipe : 4 langkah, direct injection, mesin diesel pendingin air dengan turbo intercooler
      Diameter X langkah (mm) : 104x115
      Jumlah silinder (cc) : 4 sejajar
      Isi S silinder : 3.908
      Daya maksimum (PS/rpm) : 136/2.900
      Torsi maksimum (Kg.m/rpm) : 38/1.600

      Transmisi
      Model : Model : M035S5
      Tipe : 5 gigi maju dan 1 gigi mundur, 1-5 synchromesh, gigi mundur constantmesh
      Perbandingan gigi : 5.181-2.865-1.593-1.000-0.739 Mundur 5.181
      Kopeling : Pelat kering tunggal, C3W28D

      As
      Depan : Reverse Elliot, type "I" Beam
      Belakang : Full Floating Type
      Perbandingan gigi akhir : 4.875

      Setir
      Tipe : Ball & Nut type with adjustable steering column (Tilt & telescopic)

      Suspensi
      Depan : Semi elliptic, aminated leaf springs dengan shock absorber
      Belakang : Semi elliptic, laminated leaf springs dengan shock absorber

      Rem
      Rem Kaki : Sistem Hidraulis dengan Vacuum Servo Assistance, Dual Circuit
      Rem Tangan : Tipe internal expanding di bagian belakang transmisi
      Rem Pembantu : Sistem pengereman gas buang

      Sistem Kelistrikan
      Accu : 24 V

      Kapasitas Tangki
      Tangki (liter) : 70
